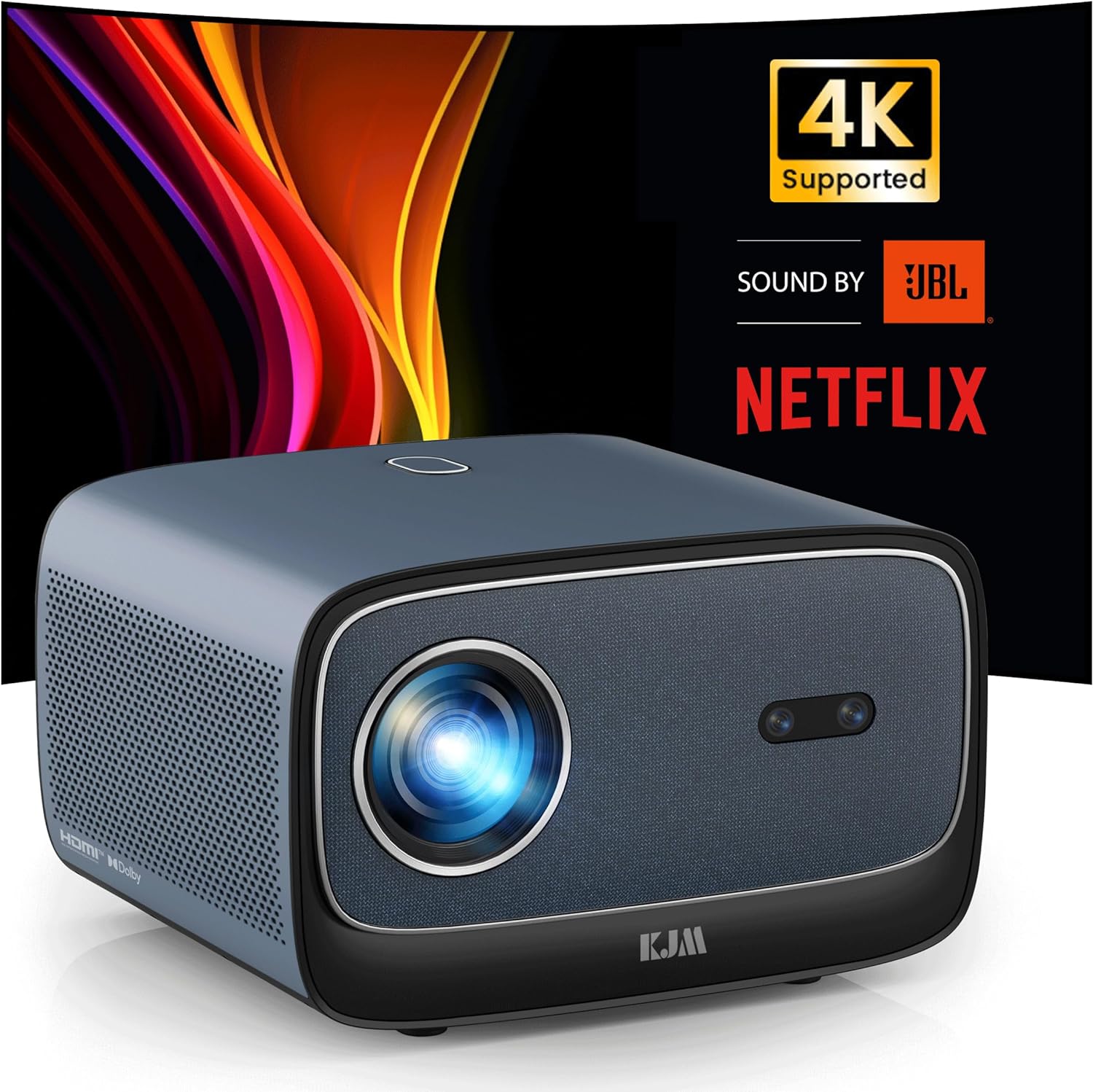

KJM Projector with Netflix Officially-Licensed, 1500 ANSI Wifi Bluetooth Projector 4K Supported, Sound by JBL 24W Speakers, Dolby Audio, Auto Focus & Keystone, HDR10

Projection light source LED 32-35V/4.4A 11-cell 7-cell ceramic lamp
Projection technology 5.7" LCD 1080P
Standard resolution 1920*1080@60FPS

brightness Type: 1500  ANSI LM
Center color temperature (5500~7500K) ±10%

Brightness uniformity >75% (100% * average illuminance at nine points / maximum illuminance)
Projection ratio 1.37:1
Contrast 1000:1
Color gamut ≥52% NTSC (depending on LCD screen specifications)
LED lifespan >30,000 hours
refresh rate 60Hz
Trapezoidal Correction Automatic: Six-axis keystone correction (camera * 1)

Correction range Automatic upper and lower keystone correction ±20 degrees, electronic correction ±45 degrees
Focusing method Autofocus (camera * 1)
Focusing time Within 12 seconds
Projection size 60-200 inches
Image size 60 inch @ 1.81m 80 inch @ 2.41m 100 inch @ 3.01m 120 inch @ 3.61m 150 inch @

Projection method Front/ Rear/ Ceiling/ Rear Ceiling
hoisting method Y
Lens material Glass
3D support Supports (red and blue 3D)
Processor (CPU) MT9266
GPU G32 MP2
RAM 1G
Storage capacity 8G
HDR type Not supported
FHD decoding/4K decoding FHD decoding MEMC Not supported

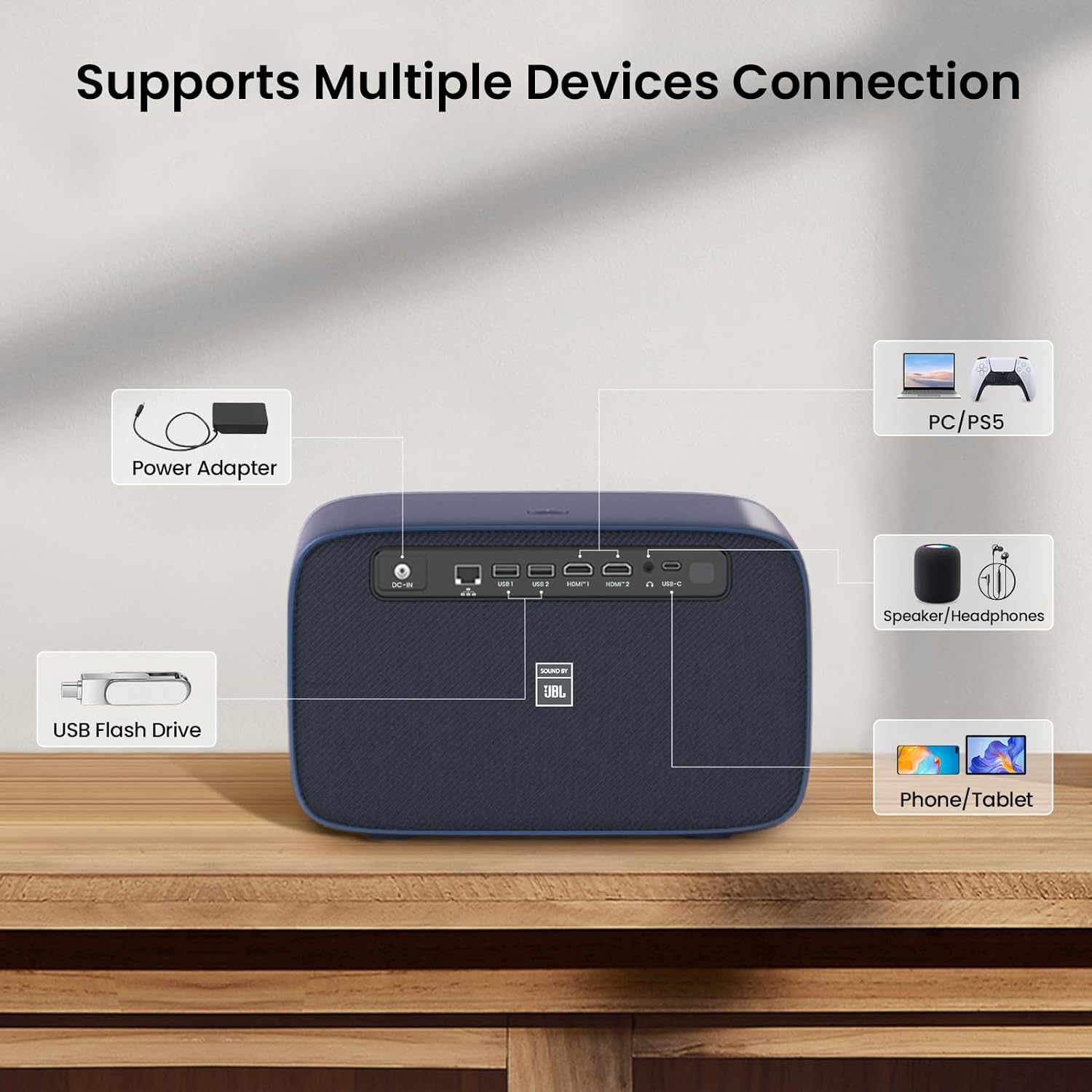

Power input DC in*1
USB interface USB 2.0*2 MicroSD card N/A
HDMI in HDMI 1.4*1
Audio input AV-IN *1
Audio output 3.5mm headphone jack *1

Power button Power physical button
LED indicator light Power button indicator light: red when off, green when on
IR receiver head support
Focusing camera support
TOF module N/A
Light sensor support
temperature sensor Supported, located at the LED light panel and the screen fan air inlet (2*NTC 10K).
Fan control 3 speed-controlled fans, 12V, -0.16A

remote control Infrared remote control
Wi-Fi module 002.029.001346 8800D40 1T1R, Dual-band Dual-antenna, Wi-Fi 6, BT 5.2
Bluetooth module Same as WIFI
Overall power consumption

Rated 240W (reference value) 1. Optical engine power: 1000 ANSI @ 150 W; 2. Total power: USB: 17.5W + CPU: 3W + FAN: 13W + SPK: 24W + Optical engine: (150W) =
207W; 3. Adapter rated power: 240W (peak value reserved for subwoofer use).

standby power consumption State definition: ≤0.5 W
Power specifications Power adapter specifications: 35V-6.85A

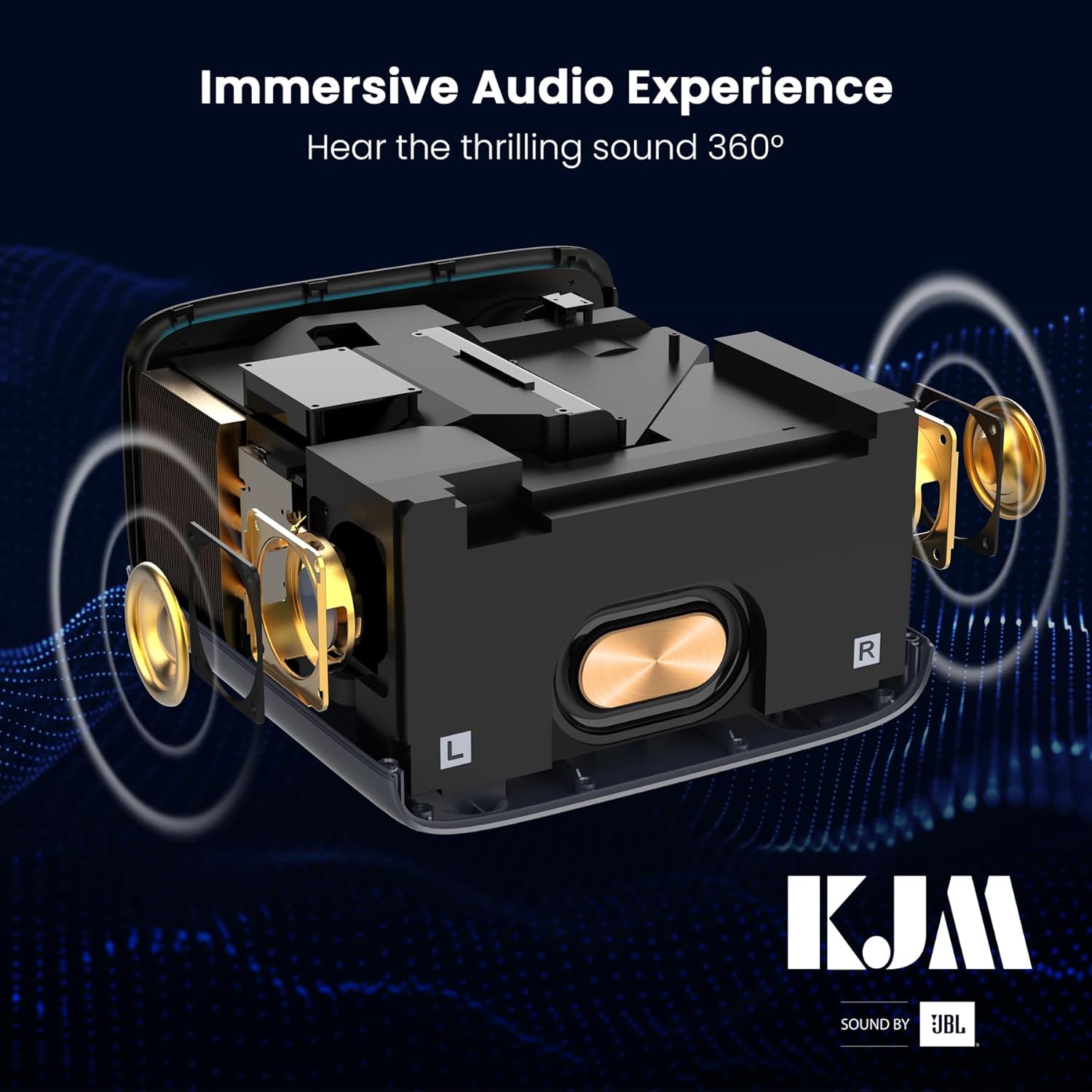

Audio Brands JBL
speaker 2*12W / Digital Amplifier 5805
Overall machine noise <36db@1m

Certification requirements Mandatory certifications in China: CCC, SRRC; Mandatory certifications overseas: CE, FCC, RoHS; Optional certifications overseas: UL/ETL/IEC/EN 62471
operating system Linux
UI Overseas public domain, including Netflix, please add the logo as required.
Image format JPEG/BMP/PNG, etc., same as SOC
audio format MP3, WAV, AAC, AC3, EAC3, Vorbis, FLAC, APE, DTS, DTSHD, etc., same as SOC
Video format AVI, MPEG 1/2, MPEG4, WMV, RealMedia, Flash, QuickTime, ASF, Matroska Video, DivX, TS Stream, etc., same as SOC
Hardware decoding MPEG-4 Part 10 - AVC H.264 (X264), Sorenson H.263 (FLV1), etc., are the same as

WIFI hotspot IEEE 802.11 a/b/g/n/ac+ Bluetooth2.1+EDR/4.2/5.1 /5.2 Wired screen mirroring N/A
Wireless screen mirroring Supports AirPlay/Miracast/DLNA and peripherals such as phones and tablets

(iOS/Android).
Video source HDMI/USB
PQ While ensuring overall brightness, the PQ (Plate Quality) is adjusted to maintain color
saturation, and multiple scene modes are provided for users to choose from.

OTA upgrade support
